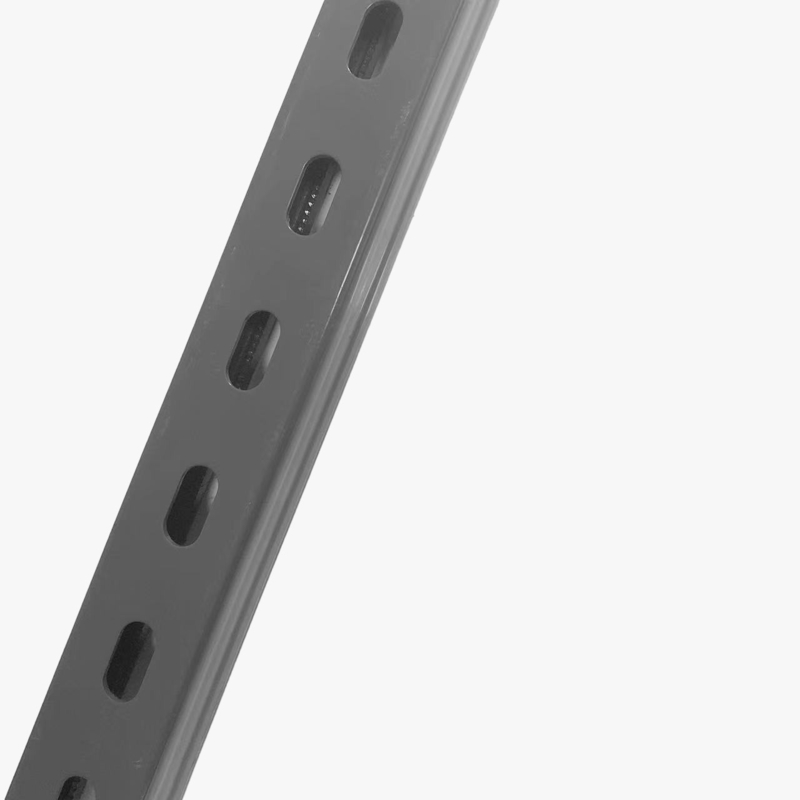

C Profile Metal Strut Channel Building Stainless Steel Unistrut SGS C Steel profile

Product Details

Place of Origin: CHINA

Brand Name: United

Certification: GR202044000642

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Contact me

Packaging Details: According to your requirements

Delivery Time: 15-30days

Supply Ability: adequate

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                C Profile Metal Strut Channel, SGS Metal Strut Channel, SGS c profile channel


Model Number:	SR -1	Processing Service::	Bending, Welding, Punching, Decoiling, Cutting
Certification:	SGS/ISO	Payment Terms:	T/T
Outer Packing Dimensions:	600x21x13.5 Or Customized	Grade:	Q235 Stainless Steel 304 Stainless Steel 316
Perforated Or Not:	Is Perforated	Processing Service:	Bending, Welding, Punching, Decoiling, Cutting
Material:	Q235 / SS304 / SS316

Model Number:	SR -1
Processing Service::	Bending, Welding, Punching, Decoiling, Cutting
Certification:	SGS/ISO
Payment Terms:	T/T
Outer Packing Dimensions:	600x21x13.5 Or Customized
Grade:	Q235 Stainless Steel 304 Stainless Steel 316
Perforated Or Not:	Is Perforated
Processing Service:	Bending, Welding, Punching, Decoiling, Cutting
Material:	Q235 / SS304 / SS316

C Profile Metal Strut Channel Building Stainless Steel Unistrut SGS C Steel profile

C Profile Metal Strut Channel Building Stainless Steel Unistrut SGS C Steel profile

Products :

Galvanized C - shaped steel has uniform zinc layer , smooth surface , strong adhesion and high dimensional accuracy . All surfaces are wrapped by zinc layer . The zinc content on the surface is usually 120 - 275g / ㎡. It has long service life , corrosion resistance and durability . It is a kind of galvanized C - shaped steel with the strongest protection . It is of high quality .

C Profile Metal Strut Channel Building Stainless Steel Unistrut SGS C Steel profile 0

Specifications:

Product Size	41 * 21 , / 41 * 41 / 41 * 62 / 41 * 82mm with slotted or plain1 - 5 / 8 '' x 1 - 5 / 8 '' 1 - 5 / 8 '' x 13 / 16 '' / or customized size length is cut according to customer's requirements U or C shape with standard AISI , ASTM , GB , BS , EN , JIS , DIN or customer's drawings
Product Material and Surface	· Material: carbon steel · Surface coating: o Galvanized o Hot Dipped Galvanizing o Electrolytic Galvanizing o Powder coating o Neomagnal
Corrosion Rating of Hot Dipped Galvanized	For example Indoor:Production premises with high humidity levels and some impurities in the air, such as food industry facilities. Outdoor:Urban and industrial atmosphere with medium sulphur dioxide levels. Coastal areas with low salinity levels. Galvanization wear:0,7 μm - 2,1 μm in a year Indoor:Chemical industry production plants, coastal shipyards and boatyards. Outdoor:Industrial areas and coastal areas with medium salinity levels. Galvanization wear:2,1 μm - 4,2 μm in a year

C Profile Metal Strut Channel Building Stainless Steel Unistrut SGS C Steel profile 1

Strut Channel specifications:

Dimensions(mm) : 41 * 41 , 41 * 25 , 41 * 21 , 41 * 72 , 41 * 82

Steel thikness(mm):1.5 , 2 , 2.5 , 2.75 , 3

Length(mm): 3000 / 6000

Channel model: Perforated & Non - perforated

Application:

High quality & reasonable Price, no need welding and punching, can use repeatedly, wide usage range, flexible for installation.
1. Standard thickness: 1.5mm,1.6mm, 2mm,2.3mm, 2.5mm,2.75mm,3.0mm.
2. Standard length: 3000mm, 6000mm and customized
3. Standard size: 41*21, 41*25, 41*41,41*62,41*82.41*62, and so on

FAQ:

1. Q: What services can you offer?

A: We are manufacturer with ISO9001, SGS certificated to provide customers reliable products with the most competitive price.

2. Q: If my trail order could not reach your MOQ, how can I order?

A: If your trail order is a small order, we can also provide the cargos but maybe we need extra customs fee for balance if by sea.

3. Q: What is the delivery time?

A: We are manufacturer that have in stock of the normal sizes. We promise to deliver the goods in 7-20 days after receiving your payment.

4. Q: Do you provide free samples?

A: Yes ,you can get free samples.

5. Strut Channel System Advantages?

High strength to cost ratio
Completely adjustable
No welding or drilling required
Strut is re-usable
One-inventory adaptable to many jobs
Saw and wrench are the only tools needed
