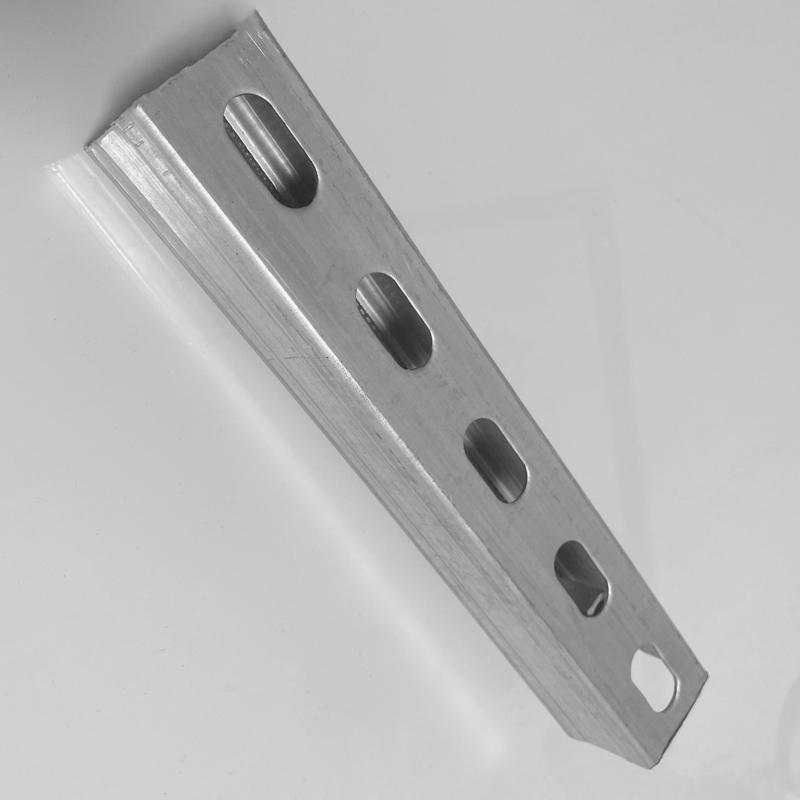

Q235 Strut C Channel
, Hot DIP Strut C Channel
, Galvanized Unistrut C Channel
Q235 Hot Rolled Strut C Channel Hot Dip Galvanized Unistrut C Shaped Building System
Q235 Hot Rolled Strut C Channel Hot Dip Galvanized Unistrut C Shaped Building System
Products
Strut channel is usually formed from metal sheet, folded over into an open channel shape with inwards-curving lips to provide additional stiffness and as a location to mount interconnecting components. Strut usually has holes of some sort in the base, to facilitate interconnection or fastening strut to underlying building structures. Strut channel, also known as strut, strut channel system, or metal framing system, is a versatile and modular support system used in construction, electrical, mechanical, and industrial applications. It consists of a series of metal channels with a standardized shape and size, designed to provide structural support, organization, and flexibility in the installation of various components and systems.
Specifications
High quality & reasonable Price , no need welding and punching, can use repeatedly, wide usage range, flexible for installation.
1. Standard thickness : 1.5mm ,1.6mm , 2mm ,2.3mm , 2.5mm , 2.75mm
2. Standard length: 3000mm , 6000mm and customized
3. Standard size: 41*21 , 41*25 , 41*41 ,41*62 ,41*82 , back to back , 41*62,41*123 and so on.
Other sizes be produced according to customer’s drawing.
| Product |
( 82 X 21mm ) Strut Channel |
| Material |
Steel |
| Size |
82 X 21mm |
| Thickness |
1.2mm - 2.5mm |
| Usage |
An overhead electrical wire hanger manufactured from two lengths of strut channel.A length of standard half-slotted strut channel used as a brace, connected to a length of half-channel mounted directly to a wall, joined with a purpose-built channel connecting steel angle. |
Fesatures
Channel Profile: Strut channel typically has a C-shaped or U-shaped profile, resembling a rectangular or square tube. The channel has parallel sides and a flat base, with slots or holes along the length to allow for easy attachment of fittings, fasteners, and accessories.
Material Options: Strut channels are commonly made of steel, particularly cold-rolled or hot-rolled steel, which provides strength and durability. However, there are also variations available in materials like aluminum and fiberglass-reinforced plastic (FRP), which offer lighter weight and corrosion resistance for specific applications.
Versatility: Strut channels are highly versatile and can be used in a wide range of applications. They are often used as a framework for mounting electrical conduits, cable trays, HVAC ducts, and piping systems. Strut channels also support equipment, such as lighting fixtures, junction boxes, instrumentation, and industrial machinery.
Modular Design: The modular design of strut channels allows for easy assembly and reconfiguration. Channels can be interconnected using fittings, brackets, and hardware, providing flexibility in creating custom configurations and adapting to changing needs.
Adjustable Support: Strut channels offer adjustable support options. Fittings such as channel nuts, spring nuts, and beam clamps can be inserted into the channel and positioned at desired locations to support or hang components at various heights or angles.
Company profile
UNITED is renowned name in the manufacturing and export c - section steel, strut channel, channel nuts, cantilever, Bracket connection accessories and so on.
The company is managed by highly dedicated team of professionals in their respective area of production system, quality control, packaging to maintain the standardization for all our products in terms to their production output and quality standards.
We Also provide Load Test and Material Test Certificate for all of our products.
